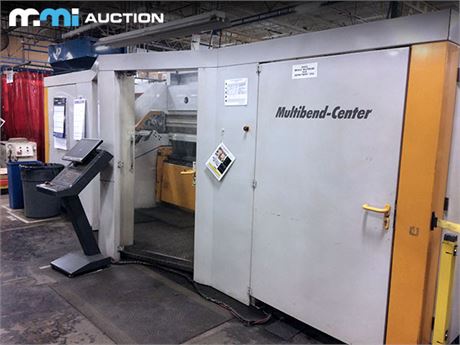

RAS MultiBend - Center 79.26 2000

Center folding system with auto load / unload
100" x .078" capacity
Built in 2000

Listing Image
Send a message or question to the listing poster:*
Date Expires
Date Posted
Posted By   Auctions
  0
View More Listings
Description
Specifications
Max Working 100.78”
Max Sheet Thickness (Mild Steel) .07” (.09”)
Max Sheet Thickness (Stainless Steel) .05”
Max Sheet Thickness (Aluminium) .11”
Finished Part Length Min. (W/O Corner Tools) 7.87”/9.84”
Finished Part Length (W. Small Corners) 14.95”/16.92”
Finished Part Length Min (W. Large Corners) 16.92”/18.89”
Finished Part Width Min. (Inside) 59” (5.51”)
Finished Four Sided Part Height Max 7.99”
Side Free Space Corner Tools (Small/Large) 1.18”/1.96”
Folding Beam Travel Range 180 Deg
Working Height 39.37"
Machine Width 303.14”
Machine Length 228.34”
Machine Max Height 94.48”
Drive Power33.5 Hp
Average Power Consumption21.5 Hp/Hr.

ALL SPECIFICATIONS ARE ASSUMED TO BE CORRECT BUT MUST BE CONFIRMED BY PURCHASING ENTITY.  ALL ITEMS ARE SOLD AS-IS, WHERE-IS UNLESS OTHERWISE SPECIFIED.

Additional Information
Make RAS
Model MultiBend - Center 79.26
Year 2000
Location Chicago
Reference Number 2157525
