Description
| Specifications |
| Table Dimensions 17.1" X 36.2" |
| X - Axis Travel 30.0" |
| Y - Axis Travel 17.1" |
| Z - Axis Travel 20.1" |
| Table Load Capacity 1320 Lbs. |
| Spindle Taper Cat40 |
| Spindle Speed 12000 RPM |
| Spindle Nose To Table 5.9" - 26" |
| Column To Spindle Ctr 20.2" |
| Max. Tool Diameter 3.1"/4.9 |
| "Max. Tool Length 11.8" |
| Max. Tool Weight 17.6 Lbs. |
| X & Y Axis Traverse 1417 IPM |
| Z Axis Traverse 1181 IPM |
| Cutting Feed Rate .04 - 590 IPM |
| Equipped With |
| Spindle Cooler, |
| Oil Skimmer upgrade, |
| Mold Making Block Look Ahead To 300 ($3000 Option), |
| Fanuc OiMD, |
| Reinshaw Software, |
| ATS Systems 160 RT Full 4th Axis Rotary Table, |
| 300psi Thru Spindle Coolant, |
| Rigid Tapping, |
| Available Manuals |
ALL SPECIFICATIONS ARE ASSUMED TO BE CORRECT BUT MUST BE CONFIRMED BY PURCHASING ENTITY. ALL ITEMS ARE SOLD AS-IS, WHERE-IS UNLESS OTHERWISE SPECIFIED.
| Additional Information | ||

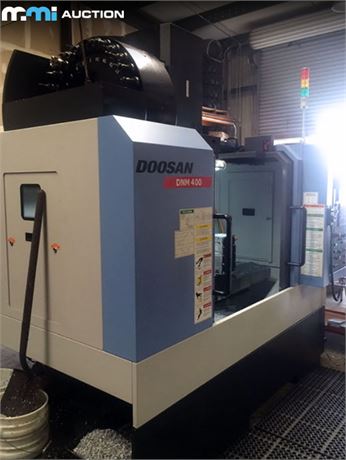

| Make | Doosan | |
| Model | DNM400 | |
| Year | 2012 | |
| Control | Fanuc OiMD | |
| Reference Number | 272107 | |
