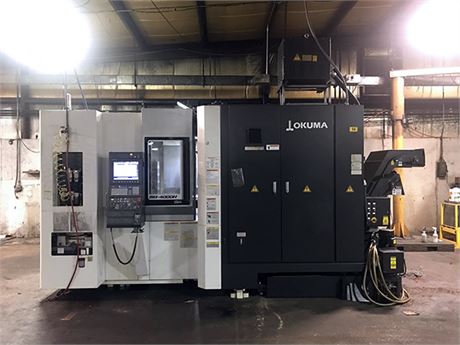

2018 OKUMA MB-4000H HORIZONTAL MACHINING CENTER

15.75” X 15.75” Pallet Size, 880 Lb. max Table Load, 54 ATC Capacity

Listing Image
Send a message or question to the listing poster:*
Date Expires
Date Posted
Posted By   Auctions
  0
View More Listings
Description
Make Okuma
Model               MB-4000H
Year 2018
Control OSP-300MA
Machine Type Horizontal Machining Center
Technical Details
X-Axis Travel 22.05"
Y-Axis Travel 22.05"
Z-Axis Travel  24.61"
Spindle Center to Pallet Top  1.97" - 24.02"
Spindle Nose to Pallet Center  3.35" - 27.95"
Pallet Size  15.75" x 15.75"
Max Table Load  880 Lbs.
Pallet Indexing  0.001 Degree (Full Fourth)
Max Workpiece Diameter  23.62" x 35.43"
Spindle Speed  15,000 RPM (Integral Spindle)
Spindle Taper  # 40
Rapid Traverse  2,362 IPM
Cutting Feedrate  2,362 IPM
Spindle Drive (10 Min/Cont) 40/30 HP
Tool Capacity 64 ATC
Max Tool Diameter w/ Adjacent Tool 2.76"
Max Tool Length  15.75"
Max Tool Weight 22 Lbs

Equipped With
OSP-P300MA CNC Control
15”: CRT – Color Graphics
Automatic Tool Touch Off
Tool Load Monitoring
Tool Life Management
Tool Breakage Detection
Renishaw RMP60 Spindle Probe
High-Pressure Coolant MP VR-8
Shower Coolant
TAS-S & TAS-C (Thermal Active Stabilizer Spindle & Casting)
MAYFRAN Dual Belt Consep 2000 Chip Conveyor
Multi-Tap Transformer
Tombstones Available
Pallet Pool Ready

Terms:

  • FULL PAYMENT DUE WITHIN 2 DAYS OF AUCTION END
  • ALL SPECIFICATIONS ARE ASSUMED TO BE CORRECT BUT MUST BE CONFIRMED BY PURCHASING ENTITY. MIUM.
  • ALL AUCTIONS ITEMS ARE SOLD AS-IS, WHERE-IS UNLESS OTHERWISE SPECIFIED. ALL SALES ARE FINAL AND BIDDING ACTIVITY IS BINDING.

FEB17

Additional Information
Make Okuma
Model MB-4000H
Year 2018
Reference Number 3571631
