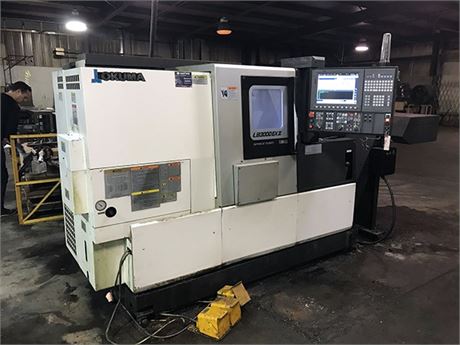

2016 OKUMA LB-3000 EXIII/500 CNC LATHE

Tool Life Management, MID-Auto Block, Manual Touch Setter, 10" Chuck

Listing Image
Send a message or question to the listing poster:*
Date Expires
Date Posted
Posted By   Auctions
  0
View More Listings
Description
Make Okuma
Model               MB-4000H
Year 2016
Control OSP-P300L
Machine Type CNC Lathe
Technical Details
Bed Length  500 mm
Max Turning Diameter  16.14"
Max Workpiece Length  17.71"
Swing Over Saddle  18.5"
X-Axis Travel  11.24"
Z-Axis Travel  20.08"
Rapid Traverse X 1,181 IPM
Rapid Traverse Z 984 IPM
Spindle Nose  A2-6
Spindle Motor  30 HP
Spindle Speed  5,000 RPM
Diameter Through Spindle 3.15"
Turret Positions  12 Position

Equipped With
1" Wedge Clamp O.D Tooling
Prep for 1,000 psi Through Turret
Tailstock - Ball Screw Driven
MT#5 with Separate revolving Center
10 Pairs of Different Length Parts Can Be Programmed
Programmable High/Low Thrust
OSP-P300LA Control
160 GIG Memory
2 GB RAM
Ethernet Comm & 4 USB Ports
TAS-C (Thermal Active Stabilizer - Casting)
LNS Hinge Belt Chip Conveyor,
Spindle Load Monitor,
Tool Life Management,
MID-Auto Block (Automatic Return To Cycle),
Manual Touch Setter,
Prep'd Door For Parts Catcher,
10" Chuck,
Box Way Construction,
OSP-P300LA Control,
"Various" Toolholders (No guarantee of type and quantity)

Terms:

  • FULL PAYMENT DUE WITHIN 2 DAYS OF AUCTION END
  • ALL SPECIFICATIONS ARE ASSUMED TO BE CORRECT BUT MUST BE CONFIRMED BY PURCHASING ENTITY. MIUM.
  • ALL AUCTIONS ITEMS ARE SOLD AS-IS, WHERE-IS UNLESS OTHERWISE SPECIFIED. ALL SALES ARE FINAL AND BIDDING ACTIVITY IS BINDING.

FEB17

Additional Information
Make Okuma
Model LB-3000 EXII/500
Year 2016
Control OSP-P300L
Reference Number 3572795
