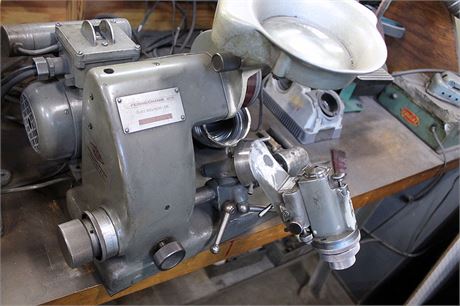

FEINMECHANIK D-812 TOOL CUTTER GRINDER

4500 RPM SPINDLE SPEED - LOCATED IN ILLINOIS

Listing Image
Auction Buyer's Premium (does not apply to Buy Now)
  • 15.00 %
Current Price $800.00   ( ) Unsuccessful
Buy Now Price $0.00
Available for immediate purchase.
End Date  [Extended]
Bid History 10 Bids
Start Date
Listed By   Auctions
  0
Description
Make Feinmechanik
Model               D-812
Location Illinois



Technical Details
Motor Capacity .34 HP
Motor Speed 2,800 RPM
Spindle Speed 4,500 RPM
Max Collet Capacity 5/8"
Taper of Adapter Sleeves MT1, MT2, or GA
Max Radius Ground .4"
Coarse Adjustment of Index Head Bracket on Tubular Guide .4"
Max Lateral Traverse of Index Head .4"
Max Longitudinal Traverse of Index Head .4"
Max Relief Angle Approx 45 deg.
Max Find Adjustment of Index Head Bracket Parallel to Spindle Axis .6"
Number of Index Registers 12

ALL SPECIFICATIONS ARE ASSUMED TO BE CORRECT BUT MUST BE CONFIRMED BY PURCHASING ENTITY.

All auction items are sold AS-IS, WHERE-IS unless otherwise specified.

JULY18

Additional Information
Make Feinmechanik
Model D-812
Location Illinois
Reference Number 2338675
